Regulating
Regulation Valves
Regulation Valve in Block Form 5A
5A111G
Back to series
5A111G
5A111G

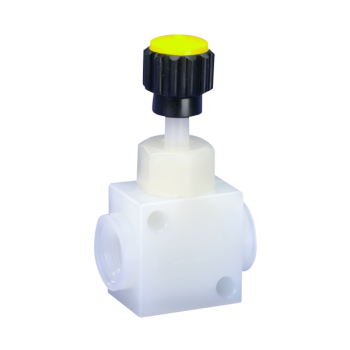

Regulation valve (Series 5A), straight, with female G-thread, in block form

Assembly instructions
Nominal Diameter
Connection A
Connection B
Material Body
Material O-ring
Article
Nominal Diameter
Connection A
Connection B
Material Body
Material O-ring
Details Bookmark
Article 5A111G0414PPFP Nominal Diameter DN04 Connection A G1/4" Connection B G1/4" Material Body PP Material O-ring FKM Details Bookmark
Article 5A111G0414PTFK Nominal Diameter DN04 Connection A G1/4" Connection B G1/4" Material Body PTFE Material O-ring FFKM Details Bookmark
Article 5A111G0414PTFP Nominal Diameter DN04 Connection A G1/4" Connection B G1/4" Material Body PTFE Material O-ring FKM Details Bookmark
Article 5A111G0414PVEP Nominal Diameter DN04 Connection A G1/4" Connection B G1/4" Material Body PVDF Material O-ring EPDM Details Bookmark
Article 5A111G0414PVFK Nominal Diameter DN04 Connection A G1/4" Connection B G1/4" Material Body PVDF Material O-ring FFKM Details Bookmark
Article 5A111G0414PVFP Nominal Diameter DN04 Connection A G1/4" Connection B G1/4" Material Body PVDF Material O-ring FKM Details Bookmark
Article 5A111G0812PPEP Nominal Diameter DN08 Connection A G1/2" Connection B G1/2" Material Body PP Material O-ring EPDM Details Bookmark
Article 5A111G0812PPFP Nominal Diameter DN08 Connection A G1/2" Connection B G1/2" Material Body PP Material O-ring FKM Details Bookmark
Article 5A111G0812PTFP Nominal Diameter DN08 Connection A G1/2" Connection B G1/2" Material Body PTFE Material O-ring FKM Details Bookmark
Article 5A111G0812PVFK Nominal Diameter DN08 Connection A G1/2" Connection B G1/2" Material Body PVDF Material O-ring FFKM Details Bookmark
Article 5A111G0812PVFP Nominal Diameter DN08 Connection A G1/2" Connection B G1/2" Material Body PVDF Material O-ring FKM Details Bookmark
Article 5A111G1012PPFP Nominal Diameter DN10 Connection A G1/2" Connection B G1/2" Material Body PP Material O-ring FKM Details Bookmark
Article 5A111G1012PTFK Nominal Diameter DN10 Connection A G1/2" Connection B G1/2" Material Body PTFE Material O-ring FFKM Details Bookmark
Article 5A111G1012PTFP Nominal Diameter DN10 Connection A G1/2" Connection B G1/2" Material Body PTFE Material O-ring FKM Details Bookmark
Article 5A111G1012PVFK Nominal Diameter DN10 Connection A G1/2" Connection B G1/2" Material Body PVDF Material O-ring FFKM Details Bookmark
Article 5A111G1012PVFP Nominal Diameter DN10 Connection A G1/2" Connection B G1/2" Material Body PVDF Material O-ring FKM Details Bookmark
Article 5A111N0414PPEP Nominal Diameter DN04 Connection A NPT1/4" Connection B NPT1/4" Material Body PP Material O-ring EPDM Details Bookmark
Article 5A111N0414PPFP Nominal Diameter DN04 Connection A NPT1/4" Connection B NPT1/4" Material Body PP Material O-ring FKM Details Bookmark
Article 5A111N0414PTFK Nominal Diameter DN04 Connection A NPT1/4" Connection B NPT1/4" Material Body PTFE Material O-ring FFKM Details Bookmark
Article 5A111N0414PTFP Nominal Diameter DN04 Connection A NPT1/4" Connection B NPT1/4" Material Body PTFE Material O-ring FKM Details Bookmark
Article 5A111N0414PVFK Nominal Diameter DN04 Connection A NPT1/4" Connection B NPT1/4" Material Body PVDF Material O-ring FFKM Details Bookmark
Article 5A111N0414PVFP Nominal Diameter DN04 Connection A NPT1/4" Connection B NPT1/4" Material Body PVDF Material O-ring FKM Details Bookmark
Article 5A111N0812PTFP Nominal Diameter DN08 Connection A NPT1/2" Connection B NPT1/2" Material Body PTFE Material O-ring FKM Details Bookmark
Article 5A111N0812PVFP Nominal Diameter DN08 Connection A NPT1/2" Connection B NPT1/2" Material Body PVDF Material O-ring FKM Details Bookmark
Article 5A111N1012PTFP Nominal Diameter DN10 Connection A NPT1/2" Connection B NPT1/2" Material Body PTFE Material O-ring FKM Details Bookmark
Article 5A111N1012PVFP Nominal Diameter DN10 Connection A NPT1/2" Connection B NPT1/2" Material Body PVDF Material O-ring FKM Details Bookmark
