Connecting
Flexible Tube Connectors
Connection Principle 1C
1C300FG
Back to series
1C300FG
1C300FG

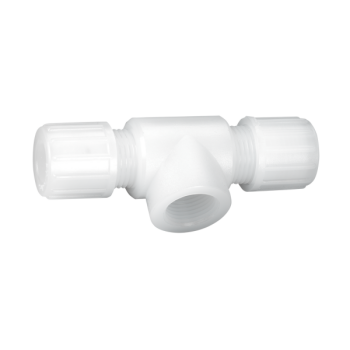

T-connector with connections for flexible tube (Series 1C) and female G-thread

Assembly instructions
Connection A
Connection B
Connection C
Material Body
Article
Connection A
Connection B
Connection C
Material Body
Details Bookmark
Article 1C300FG1514PF Connection A DN3/8"/1/2" Connection B DN3/8"/1/2" Connection C G1/4" Material Body PFA Details Bookmark
Article 1C300FG4012PV Connection A DN04/06 Connection B DN04/06 Connection C G1/2" Material Body PVDF Details Bookmark
Article 1C300FG4014PF Connection A DN04/06 Connection B DN04/06 Connection C G1/4" Material Body PFA Details Bookmark
Article 1C300FG4014PN Connection A DN04/06 Connection B DN04/06 Connection C G1/4" Material Body natural PP Details Bookmark
Article 1C300FG4014PP Connection A DN04/06 Connection B DN04/06 Connection C G1/4" Material Body PP Details Bookmark
Article 1C300FG4014PV Connection A DN04/06 Connection B DN04/06 Connection C G1/4" Material Body PVDF Details Bookmark
Article 1C300FG4018PF Connection A DN04/06 Connection B DN04/06 Connection C G1/8" Material Body PFA Details Bookmark
Article 1C300FG4018PP Connection A DN04/06 Connection B DN04/06 Connection C G1/8" Material Body PP Details Bookmark
Article 1C300FG4312PF Connection A DN06/08 Connection B DN06/08 Connection C G1/2" Material Body PFA Details Bookmark
Article 1C300FG4312PP Connection A DN06/08 Connection B DN06/08 Connection C G1/2" Material Body PP Details Bookmark
Article 1C300FG4312PV Connection A DN06/08 Connection B DN06/08 Connection C G1/2" Material Body PVDF Details Bookmark
Article 1C300FG4314PF Connection A DN06/08 Connection B DN06/08 Connection C G1/4" Material Body PFA Details Bookmark
Article 1C300FG4314PV Connection A DN06/08 Connection B DN06/08 Connection C G1/4" Material Body PVDF Details Bookmark
Article 1C300FG4318PV Connection A DN06/08 Connection B DN06/08 Connection C G1/8" Material Body PVDF Details Bookmark
Article 1C300FG4338PN Connection A DN06/08 Connection B DN06/08 Connection C G3/8" Material Body natural PP Details Bookmark
Article 1C300FG4338PP Connection A DN06/08 Connection B DN06/08 Connection C G3/8" Material Body PP Details Bookmark
Article 1C300FG4512PP Connection A DN08/10 Connection B DN08/10 Connection C G1/2" Material Body PP Details Bookmark
Article 1C300FG4512PV Connection A DN08/10 Connection B DN08/10 Connection C G1/2" Material Body PVDF Details Bookmark
Article 1C300FG4514PF Connection A DN08/10 Connection B DN08/10 Connection C G1/4" Material Body PFA Details Bookmark
Article 1C300FG4514PP Connection A DN08/10 Connection B DN08/10 Connection C G1/4" Material Body PP Details Bookmark
Article 1C300FG4514PV Connection A DN08/10 Connection B DN08/10 Connection C G1/4" Material Body PVDF Details Bookmark
Article 1C300FG4714PF Connection A DN09/12 Connection B DN09/12 Connection C G1/4" Material Body PFA Details Bookmark
Article 1C300FG4812PF Connection A DN10/12 Connection B DN10/12 Connection C G1/2" Material Body PFA Details Bookmark
Article 1C300FG4812PV Connection A DN10/12 Connection B DN10/12 Connection C G1/2" Material Body PVDF Details Bookmark
Article 1C300FG4814PF Connection A DN10/12 Connection B DN10/12 Connection C G1/4" Material Body PFA Details Bookmark
Article 1C300FG4814PP Connection A DN10/12 Connection B DN10/12 Connection C G1/4" Material Body PP Details Bookmark
Article 1C300FG4814PV Connection A DN10/12 Connection B DN10/12 Connection C G1/4" Material Body PVDF Details Bookmark
Article 1C300FG5612PP Connection A DN16/20 Connection B DN16/20 Connection C G1/2" Material Body PP Details Bookmark
