Connecting
Flexible Tube Connectors
Connection Principle 1A
1A201P

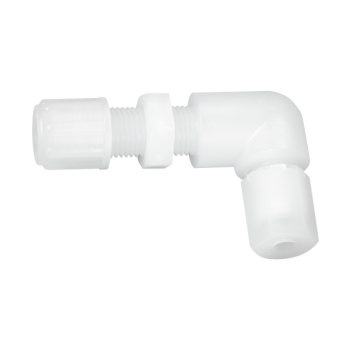

Illustration exemplary
1A201P40PV
Elbow bulkhead union with connection for flexible tube (Series 1A) and connection for pipe (Series 2N)
Technical information
All data in mm; Illustration exemplary
Technical data
| Connection A | DN04/06 |
| Connection B | D06 |
| Material Body | PVDF |
| Pressure Stage | PN10 |
| Max. Media Temperature | 140°C |
Starting from the nominal pressure rating (at 20°C), the permissible pressure reduces with increasing media temperature.
