Tri-Clamp Connector 3C
3C100TC

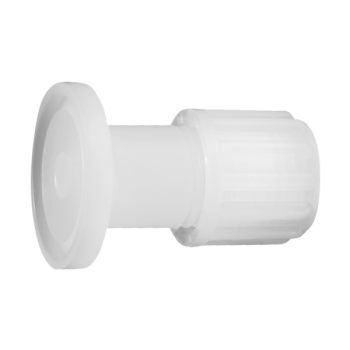

Illustration exemplary
3C100TC250645PP
Tri-Clamp connector (Series 3C) with connection for tube (Series 1C)
Technical information
All data in mm; Illustration exemplary
Technical data
| Dimension A | TC25 |
| Inner Diameter | ID06 |
| Connection B | DN08/10 |
| Material Body | PP |
| Material Sealing Ring | PTFE |
| Material Cutting Ring | PEEK |
| Material Knurled Nut | PP |
| Pressure Stage | PN6 |
| Max. Media Temperature | 90°C |
Starting from the nominal pressure rating (at 20°C), the permissible pressure reduces with increasing media temperature.
