Tri-Clamp Connector 3C
3C100TT

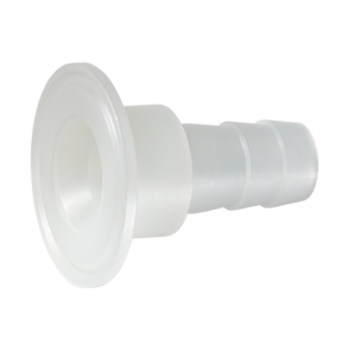

Illustration exemplary
3C100TT502648PT
Tri-Clamp connector (Series 3C) with barb connection for tube (Series 3T)
Technical information
All data in mm; Illustration exemplary
Technical data
| Dimension A | TC50.5 |
| Inner Diameter | ID26 |
| Connection B | DN10 |
| Material Body | PTFE |
| Pressure Stage | PN6 |
| Max. Media Temperature | 150°C |
Starting from the nominal pressure rating (at 20°C), the permissible pressure reduces with increasing media temperature.
