Ball valve (Series 6RD), with electrical part-turn actuator (COMPACT) and electrical position indicator, with female G- or NPT-thread, 4-way, with through bore
Illustration exemplary
6RD741F0614PVFK

Ball valve (Series 6RD), with electrical part-turn actuator (COMPACT) and electrical position indicator, with female G- or NPT-thread, 4-way, with through bore

Technical information

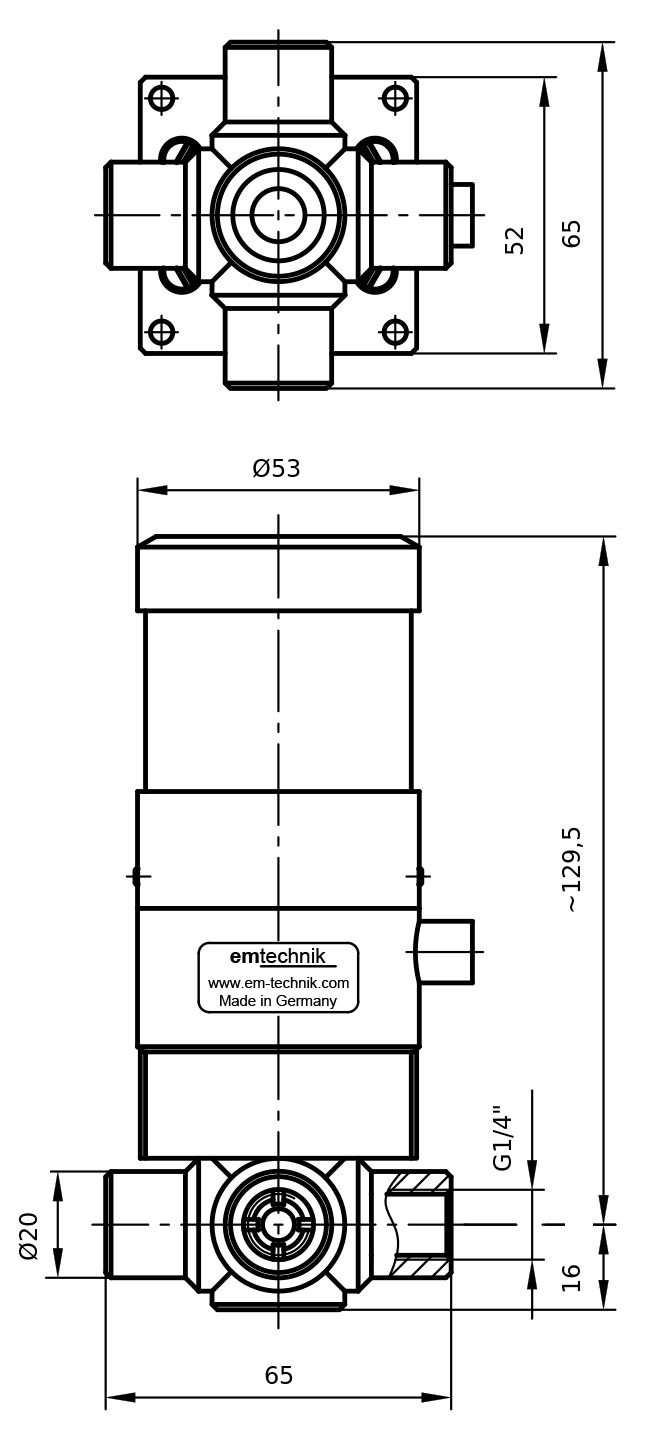

All data in mm
All data in mm; Illustration exemplary
Technical data
Nominal Diameter DN06
Connection G1/4"
Material Body PVDF
Material O-ring FFKM
Material Ball PVDF
Material Sealing Sleeve PTFE
Material Pressure Screw -
Kvs Value 0.9 m³/h
Max. Media Temperature 140°C
Pressure Stage PN10
Electrical Actuator Max. Ambient Temperature 70°C
Electrical Actuator Voltage 24 VDC
Electrical Actuator Power Consumption 180 mA
Electrical Actuator Torque 1.2 Nm
Electrical Actuator Protection Class to EN 60529 IP 65
Electrical Actuator Connection 8-pole round plug with 2 m connection cable
